Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min

Name: Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40Lmin
Brand: junqi
Price: 1 USD

China Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min wholesale

Brand Name : junqi

Model Number : DKB80

Certification : IS9001, TS16949,CE

Place of Origin : China

MOQ : 5 sets

Price : Negotialbe

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000set/month

Delivery Time : base on order,

Packaging Details : suitable for export

Model : DKB80-12A

Material : Aluminium alloy

Voltage : 12VDC

Power : 80W

Rated Flow Rate : 1800L/H

Max Head : 10M

Application : Hybrid bus, electric vehicles

Theory : Centrifugal Pump

Usage : Coolant

Contact Now

12V Electronic Coolant Water Pump, Brushless DC Motor Water Pupms For EV Car

Features:

1. Constant power, the voltage is 9 v - 16 v change, pump power constant;
2. Overtemperature protection: when the environment temperature over 100 ℃ (limit temperature), water pump stop, in order to guarantee the life of the pump, suggest installation position in low temperature or air flow better;
3. Overload protection: when the pipeline has impurities, cause the pump current increases suddenly, the pump stop running;
4. Soft start;
5. PWM signal control functions.

Product Details:

Description	12V 80W Auto Electrical Water Pumps
Model	DKB80-12A
Rated Voltage	12V	Voltage Range	9V~16V DC
Medium Temp	≤90℃	Ambient Temp	-40℃~+100℃
Noise(dB)	≤50dB	Service Life	≥6000hours
Motor Type	Brushless DC Motor	Warranty	12 Months
Flow Rate	Q=1500L/H (6m)	Current	≤11.5A(6m)
Waterproofing Grade	IP67	OEM	Accepted
Application	The New Enery Automotive cooling cycle, Automotive engine Cooling Circultaion, Heating Vertilation Air Conditioning,Truck Motor Control Cooling Cycle.

Mounting Instruction and Notice:

Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min

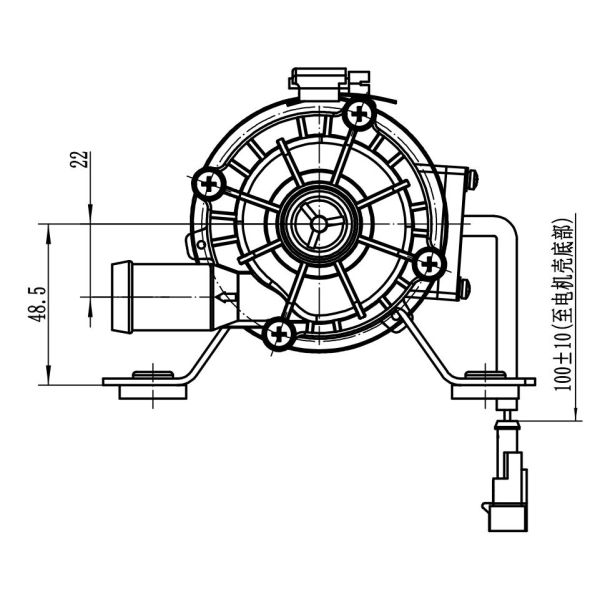

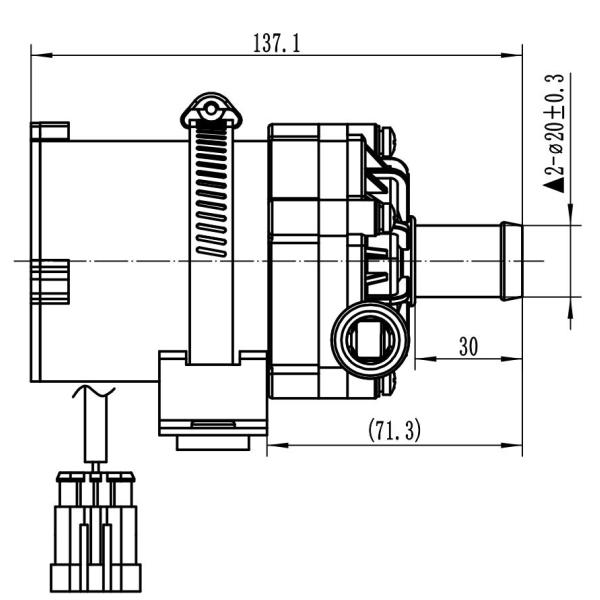

External Dimension

Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min

PWM Chart:

Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min

Duty Cycle(%)	Description
0≤duty＜5%	Defult Output(Max Speed)
5%≤duty≤15%	PWM mode, halt command
15%＜duty≤85%	PWM mode, Linear speed regulation range
85＜duty＜100%	PWM mode, Speed limited ( max speed)
Remarks: PWM duty cycle error range:±2% PWM voltage: DC24V PWM frequency: 1KHz Notes: A: Recommended 10% duty cycle as the stop command B: Recommended 0%,95% duty cycle as default output mode ( Max speed, PWM disable)

H-Q Curve:

Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min

Applications:

Apply to HEV(Hybrid Electrical Vehicle),EV(Electric Vehicles), trains, ships and other heating circulation and cooling circulation system.
